Zhejiang Lianggong Machinery Technology co.,ltd

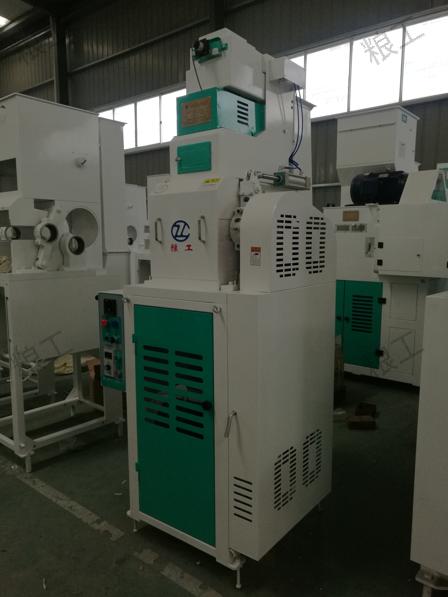

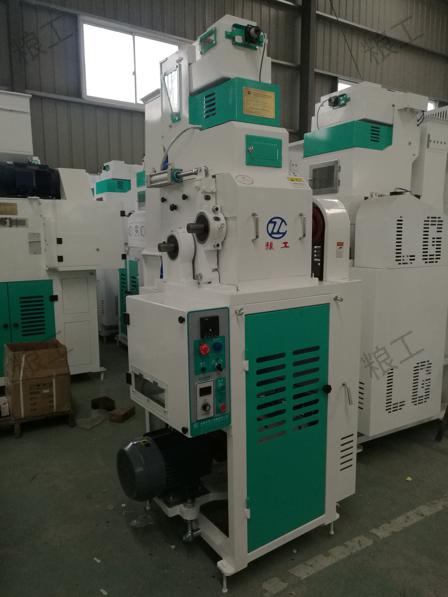

MLGQ25C VIBRATIVE VARIABLE FREQUENCY AUTOMATIC AIR-PRESS HUSKER

Application and Features

1.Variable frequency vibrating feeding, uniform feed-in, high volume: adopt new-type vibrating feeder with variable frequency function, the feeding flow can be adjusted as per the actual situation, continuously exuviating with high ration and high volume.

2. Automatic control, easy operation: high degree of automation, easy operation, and the feed-in door will open automatically, while the rubber rollers fold automatically when there is material fed, otherwise, the feed-in door will close, and rubber rollers will be apart from each other automatically.

3. The rollers are entirely installed, without irregular products, and improve the rubber consumption rate: Adopt entirely parallel motion board to install the rollers,which ensures that the pressure to the rollers are even to improve the usage.

Type Specification

Major Technical Parameters

Model

Capacity(t/h)

With Broken(%)

Air Blow(m³/h)

Power(kw)

Exterior Size lxwxh(mm )

Weight(kg)

MLGQ25C

2.5-3.5

Indica4.0

Japonica1.5

3300-4000

5.5

1200X961X2112

500

MLGQ36C

4.5-5.5

Indica4.0

Japonica1.5

4000

7.5

1248X1390X2162

700

MLGQ51C

6.5-8.0

Indica4.0

Japonica1.5

4500-5000

11

1280X1410X2270

.850
